EasyCon GSM - 2 inputs and 1 OC output
- Manufacturer: ASC Global
- Model: 0002
-
Availability:
In stock
- Expected delivery: June 17, 2025
-
Ultra compact GSM communicator just 61x31mm
- Miniature GSM communicator(6 x 3 cm)
- 2 contact driven output
- 1 Open Collector output
- It can be controlled either by SMS from unlimited phone numbers, or by voice call from 1000 phone numbers
- Forwarding SMS and voice message to 8 users
- Transmission to the monitoring station via GPRS
- Programming by SMS, PC, Android or by Voice menu
text_accessibility_product_tab_title
Description
In case of signal arriving to one of the inputs, the device forwards SMS, voice call Contact ID to the user/monitoring station. At most 8 notified phone number can be set. It is possible to set the type of the notification to each numbers. The voice message can be siren sound or a pre-recorded voice message ( the identification message is 15 sec., the alarm message is 8 sec.) Notification event can be: alarm arriving to the input, external power monitor, lifetest. Customized SMS can be set about the alarm event. The dial time, the number of dials, and the circular call function can be set separately.
Output control can be made from unlimited phone numbers with a free call. When controlling with caller identification numbers can be stored in the memory of the module (1,000 in this case), or on the SIM card inserted. The output can be monostable (at most 65000 sec.) or bistable.
The module can be programmed by SMS, voice menu, android (bluetooth) or PC (USB, Bluetooth) with the ProRead software.
Besides continuous power source monitoring the module observes also the GSM strength. These data can be readout in hourly divisions and these can be charted by the programming software.
The GSM remote controller can store up to 16.000 events in which appear states of the inputs and outputs, power source restarts, GSM system and module state related information, incoming and outgoing calls and SMSs.
SIM functions: forwarding incoming SMSs to a predefined phone number, Warning message regarding the expiring date of the SIM card.
Voice menu: call center, human voice menu system, it reads back the numbers for the error free programing.

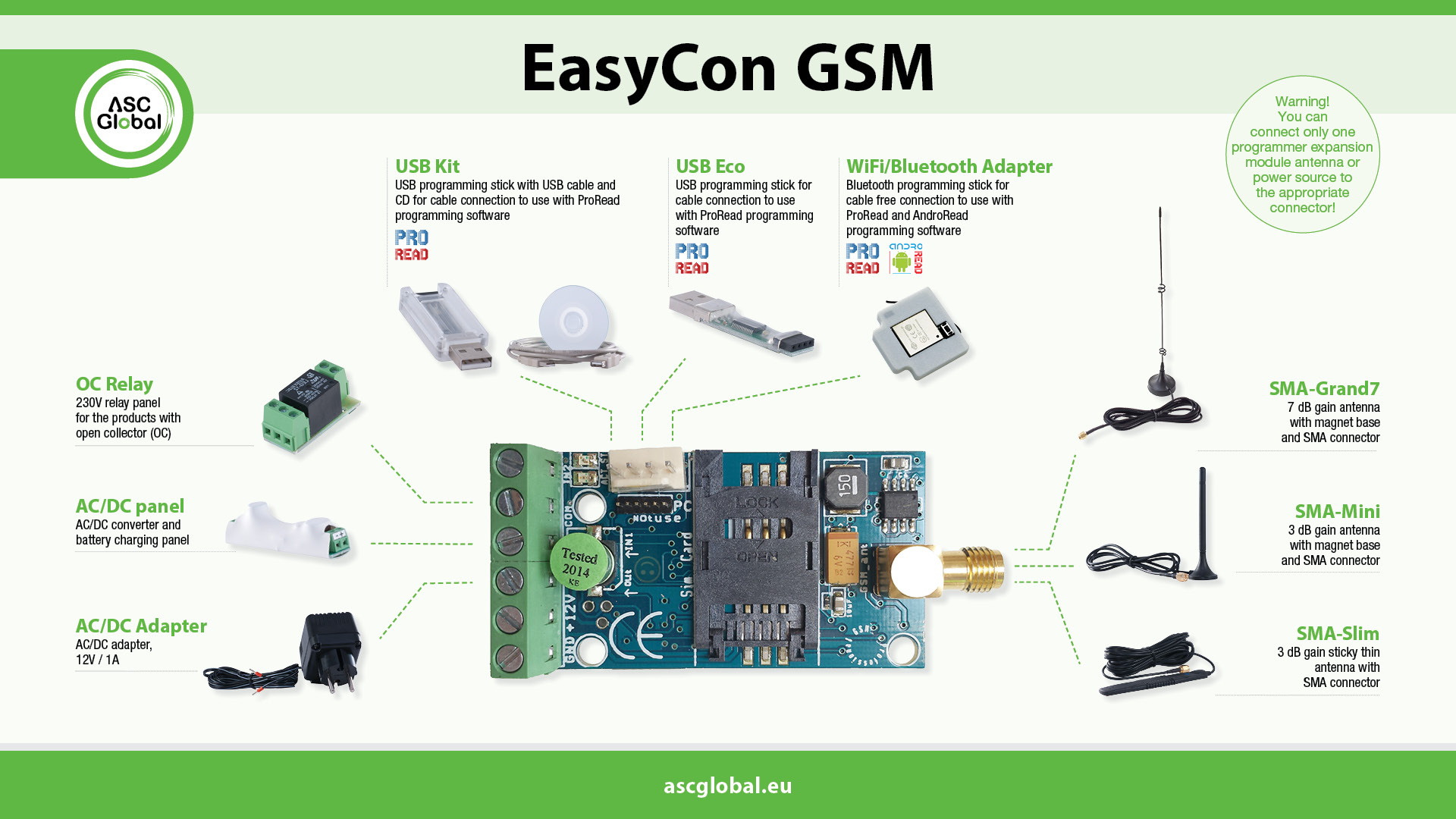

The smallest GSM remote controller: the panel size just 61×31 mm! Due to its miniature size, it can be installed to the smallest places even into a photocell or to a gate control system.
Application areas
- GSM/GPRS transmitter for alarm centers
- Sending SMS or voice message to the end-user in case of alarm
- GSM remote controller: gate-, barrier and garage opening
- Home automation (air conditioner, heating system, Sauna, lighting)
- Monitoring network power supply (230V) as well as sending notification in case of power outage
- Mini alarm center
Product features
| Inputs (+ expander): | 2 |
| Relayed Outputs (+ expander): |
|
| Relayed output load: |
|
| OC outputs (+ expander): | 1 |
| OC output load: | max. 30V@400mA |
| User phone numbers for sending notifications: | 8 |
| User phone numbers for output control: | Unlimited / 1000 phone number |
| Independent signal sending to monitoring center: |
|
|
User phone numbers for forwarding incoming SMSs: |
/1
|
| Transmission channel: | GSM/GPRS |
| Caller identification: |
|
| Alarm center function (arm/disarm, entry/exit delay) |
|
| Selectable 24h zones: |
|
| Adjustable input sensitivity: |
|
| Configurable inputs (NO/NC): |
|
| Independent SMS sending to user phone numbers with customized text: |
|
| Monitoring station phone numbers: | 2 |
| Periodic test report sending: |
|
|
Sending recorded voice message to user phone numbers: |
/6(+1)
|
| Sending alarm to user phone number with siren sound: |
|
| Inbuilt internal clock: |
|
| Event list / number of stored events: | 16 000 |
| GSM signal strength monitoring and logging hourly |
|
|
Translation Contact ID codes into SMS along with sending it to user phone numbers (Distinguishing 250 events and 250 zones) |
|
| Configurable own Contact ID codes: |
|
| Telephone line simulation: |
|
| PSTN phone line monitoring: |
|
|
Output activation with free GSM call: |
|
| Security SMS password: |
|
| Programming software(PC, Android): |
|
| Programming method: | USB / SMS / Bluetooth / WIFI |
| Battery connection options: |
|
| Power drain (standby/transmitting over GSM): | 25mA/700mA |
| Simulated line/transmitting over GSM: |
|
| Power voltage: | 9-20 VDC |
Parameters
| text_accessibility_param_name | text_accessibility_param_value |
|---|---|
| Power voltage | 9-20 VDC |
| Standby power drain | 25 mA |
| Maximum power drain | 700 mA |
| Open Collector output load | max. 30V / 400mA |
| GSM module type | SIMCOM 800 |
| GSM frequencies | GSM 850 / EGSM 900 / DCS 1800 / PCS 1900 (Multi-Band) |
| SIM card usage | brand free GSM module |
| GSM antenna type | with SMA connector (comes with the package) |
| Dimension | 61 x 31 x 14 mm, in package:132 x 128 x 32 mm |
| Operation temperature | 0°C – +40°C |
