IPCOM 4G Cloud - IP and 4G communicator with 2IO Cloud compatible

• Immediate two-way transmission (Contact ID)

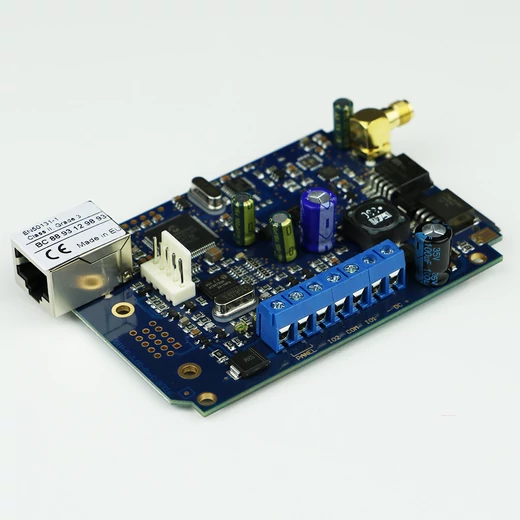

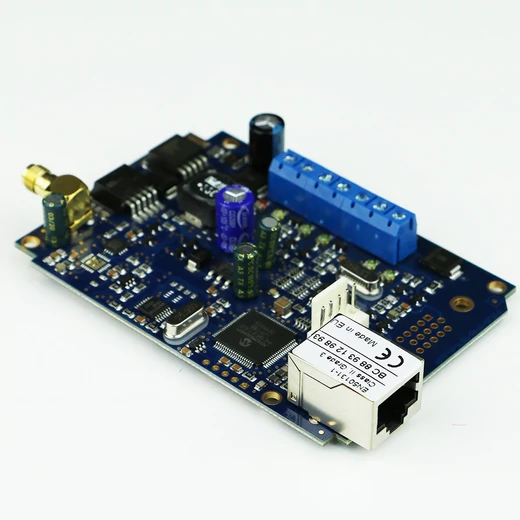

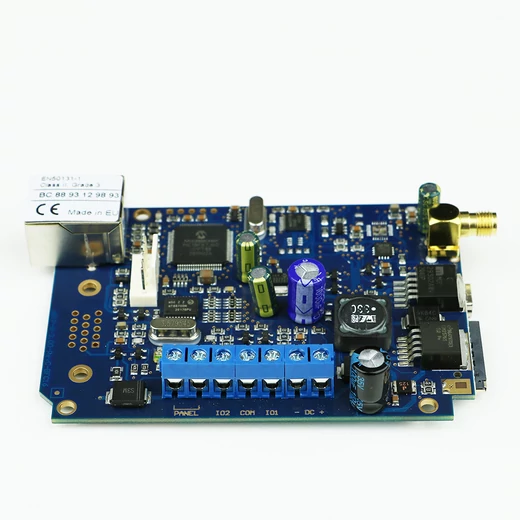

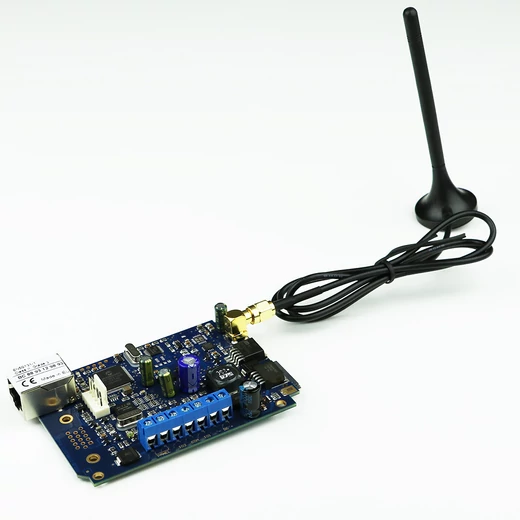

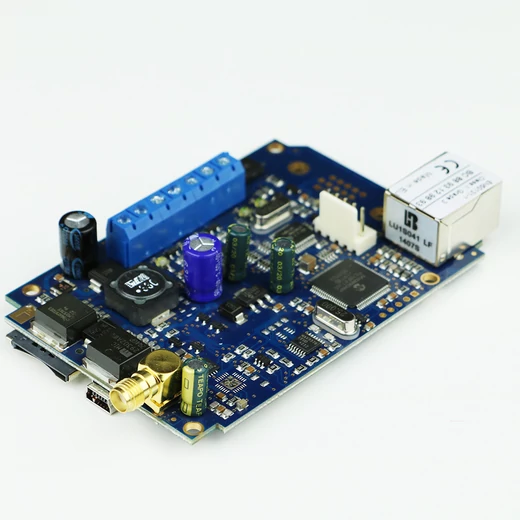

• PCB card and Alloy housing versions are available
• Sending to two monitoring stations through Ethernet
• Sending to two monitoring stations through GPRS
• Backup / Parallel / Main GPRS/HSPA operation modes
• Remote programming (through IP network)
• Automatic configuration of network settings (DHCP)
• SMS forwarding to given mobile phone
• Buffer memory with 64 events
• Encrypted communication (AES-128)
• Local configuration through USB with VUP cable (optional)
• Two inputs with configurable event codes
• 8 / 16 inputs extension with IP-IO8 module (optional)
• Event receiving through the telephone line
• Configurable test sending parameters
• Firmware update function
• CE declaration, ISO 9001:2009 certificate
• Made in EU, excellent product support

Cloud connection

• connection to the ASCloud Manager server
• you can use Cloud Manager application (Android and iOS) as an output controller
• unlimited users number to assign to the output control
• Information about the status of the device input/output/Cloud connection
• push and e-mail message notification about the input event

I/O used as output:

• 2 OC outputs, which can already be used as relay outputs with the OC relay
• the two outputs can be controlled separately with the Cloud Manager application
• output mode: monostable max. 65535 seconds, can be specified per output
• manage user accesses per output (ascloudmanager.eu interface)
• can be controlled from a computer with a URL (e.g. reception or concierge)
• unlimited users for control
• we can receive e-mail and push notifications about output status changes

I/O used as input:

• send a signal to the monitoring station Contact ID, SIA DC09 event
• Push and e-mail to the user in case of the input signal and reset
• event log, remote access from the cloud

Expansion of outputs and inputs with an IO84 expander, max. 2 expanders/panels (max. +16 inputs and +8 outputs in addition to the module's own I/O connection). We can also receive Push and e-mail messages from the inputs and outputs of the extension panel.
