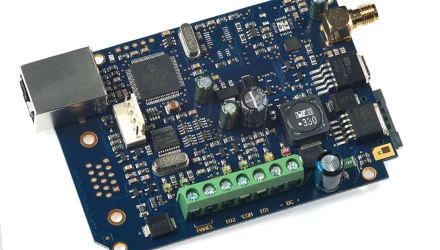

IPCOM-G and IPCOM-4G communicator

02/04/2020 12:00:00 AM
he IPCOM–G and the IPCOM-4G communicator is recommended for high security applications where backup transmission line is essential. The main reporting channel is the wired Internet, which provides immediate alarm transmission and action without additional operation cost. The secondary reporting channel is GPRS or 3G / 4G. The Secondary GPRS / 3G / 4G channel can be used as a backup channel (if Ethernet network fails), in parallel way (Ethernet and mobile data transmission at the same time), and as a main transmission channel (if there is no Ethernet network at installation site).



Product identification: IPCOM-G

IP/GPRS (2G) communicator with programmable I/O and encryption.

Product highlights

  • Immediate two-way transmission (Contact ID)
  • Automatic configuration of network settings (DHCP)
  • Sending to two monitoring stations through Ethernet/GPRS
  • Backup/Parallel/GPRS-Only operation modes
  • Remote programming (through IP network)
  • SMS forwarding to given mobile phone
  • Encrypted communication (AES-128)
  • Two inputs with configurable event codes
  • Output control via web
  • Contact – IP, Serial – IP converter function
  • Local configuration through USB
  • Firmware update function
  • CE declaration, ISO 9001:2009 certificate
  • Grade III. Certification
  • Made in EU, excellent product support

Accessories included

  • 5dB antenna with 1.8m cable (ANT-G5)
  • 4pcs of self-adhesive spacers

Application for ARC transmission with Enigma IP receiver

Product identification: IPCOM-4G

IP/LTE (2G / 3G / 4G) communicator with programmable I/O and encryption.

Product highlights

  • Immediate two-way transmission (Contact ID)
  • Automatic configuration of network settings (DHCP)
  • Encrypted communication (AES-128)
  • Remote programming (through IP network)
  • Sending to two monitoring stations through Ethernet 2G/3G/4G
  • Backup/Parallel/GPRS-Only operation modes
  • SMS forwarding to given mobile phone
  • Two inputs with configurable event codes
  • Output control via web
  • Contact – IP, Serial – IP converter function
  • Local configuration through USB
  • Firmware update function​​​​​​​
  • Grade III. Certification

Accessories included

  • 5dB antenna with 1.8m cable (ANT-G5)
  • 4pcs of self-adhesive spacers

​​​​​​​​​​​​​​


Installer manual to the IPCOM-4G


Comparison table
