Output can be set to switch to another state (bistable) or to switch to a pre-programmed time (monostable). Output is controlled by phone call. Depending on the settings the control can be made with or without caller identification.
If there any changes at the input the MultiOne GSM module will send SMS or that will make an SMS with a call to a programmed phone number.
Module settings can be adjusted by using DIP switches and SMS.
If you would like you can choose the MultiOne GSM with the boxed and wired version also, this is the MultiOne GSM Kit.
MultiOne GSM distributor price is starting from 59€, and the MultiOne GSM Kit from 72€. The antenna is included and the 3 years warranty also. MultiOne GSM kit contains the plastic box and the wiring also.
Please visit the ASC Global website: http://ascglobal.co.uk/products/multione-gsm/

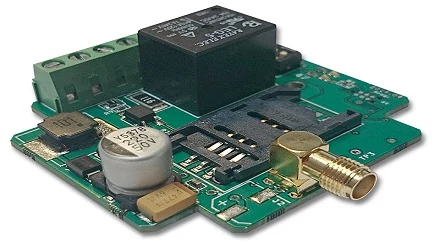

MultiOne GSM main features:
- 1 optocoupler (voltage) input
- 1 230VAC / 24VDC, NO/NC relay output
- Monostable (250 sec.) Bistable output control
- Power supply: 16-24 VAC or 10-30 VDC
- SMS sending to a predefined user phone number
- Output control by phone numbers which are saved on the SIM card (250/500), or control without caller ID
- Programming by DIP switches and SMS
Technical data:
- Power supply: 16-24 VAC or 10-35 VDC
- Standby / maximum current drain:
- 12V@25mA/700mA
- 24V@15mA/350mA
- Output relay load: max. 230V@5A
- GSM modem type: SIMCOM 800
- GSM frequencies: GSM 850 / EGSM 900 / DCS 1800 / PCS 1900 (Multi-Band)
- SIM card usage: carrier-free module
- GSM antenna type SMA connector ( the package contains)
- Size: 59 x 53 x 21 mm, package size: 132 x 128 x 32 mm
- Operating temperature range: -20°C – +50°C
