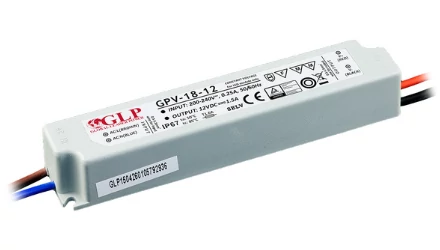

Power supply for external application

05/03/2018 09:16:47 AM

We have started to distribute a new power supply at the beginning of April to be able to serve you from stock. The power supply is tested with all of our modules to provide the proper operation in every circumstances.



Features:

  • Constant voltage design
  • European AC input range
  • Protections: Short circuit / Over current
  • Cooling by free air convection
  • Isolation class II
  • Class 2 power unit
  • Fully encapsulated with IP67 level [5]





Dimensions:
129.5x25x21mm
Working temperature(°C):
-30 ÷ 70
Rated power:
18 w
Rated voltage:
DC 12V
Rated current:
1,5
Voltage range:
180 ÷ 264VAC
Type:
Switched mode power supply
Maximum load:
100%

Minimum load:

20%
IP protection:
IP 67 internal
Frequency range:
50-60Hz
Enclosure:
plastic, fully encapsulated
Connector:
bared cable
Weight:
0,15Kg
Warranty:
5 years
