EXP Relay - 1 relay expand module to the ProCon GSM/4G Cloud and ProLine GSM
- Manufacturer: ASC Global
- Model: 0008
-
Availability:
In stock
- Expected delivery: August 12, 2025
-
Output expansion panel for ProCon GSM Cloud, ProCon 4G Cloud and ProLine GSM

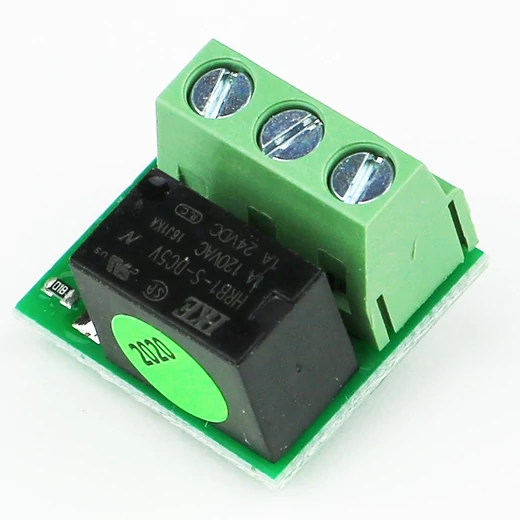

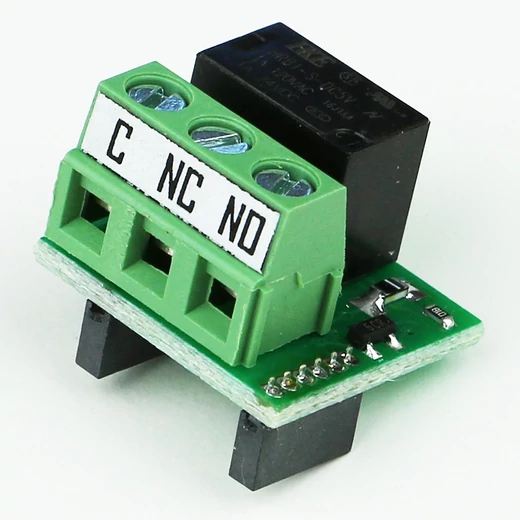

Expansion panel with one relay output for ProCon GSM Cloud, ProCon 4G Cloud and ProLine GSM.
Application areas
- Automation: gate, barrier, garage door opening
- It is possible to set permissions for the outputs
- In case of DTMF control we have the possibility to use our GSM module as a remote controller
-
Product tabs
Description
- The output can be controlled by SMS or by free call
- The output can be Monostable (up to 65000 seconds) or bistable
- If the ProCon GSM is used as an alarm center, the output can control the siren
- In the programming software you can find the expansion module with the name “Kimenet2”
Parameters
Property | Value |
---|---|
Relay output (It can be loaded max. 50VDC/1A) | |
Operational temperature | -20°C – +50°C |
