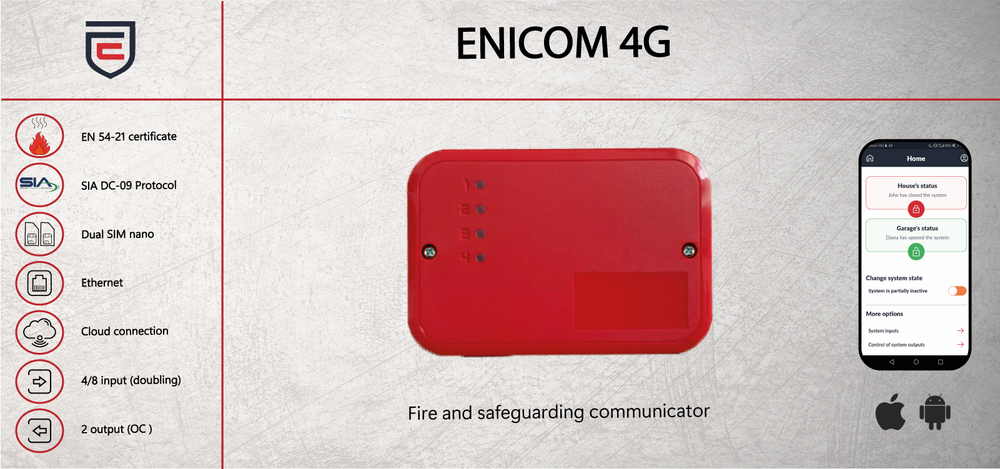

ENICOM 4G - EN54-21 certified transmitter with 4 doubleable inputs and 2 outputs

EniCom 4G communicators are recommended for security and fire protection applications, where the signal transmission to the remote monitoring centre must be solved by providing a redundant transmission path. The main transmission direction is the Ethernet network; the mobile network (GPRS, LTE) can be used as a backup. In all cases, communication takes place using a standard IP-based protocol.

The EniCom 4G communicator receives the contact signals from the alarm/fire centre on its input and then transmits them to the monitoring station via the Ethernet / Mobile (LTE) network.

EniCom 4G communicators can send messages to monitoring station receiver(s) via Ethernet or mobile internet network. Four independent communication paths can be defined, each with 3 communication channels (Ethernet and Modem: 2pcs GSM/4G networks, thanks to the 2 SIM cars), to which four arbitrary servers can be assigned on different media (Ethernet or GPRS/LTE).

Among the report modes, you can choose from 4 predefined settings:

• 1 Path (channel)
• 1 Path (server)
• Channel paths
• Server paths

DHCP is the default setting for connecting to an Ethernet network; network properties are assigned automatically. Of course, the function can be turned off, and the network parameters can be entered manually.

The communicator can manage two SIM cards, so if the primary service provider is unavailable, it can also connect to the network of the secondary service provider.

The loop type of the inputs can be programmed as NC or NO, without or with 1 or 2 EOL resistors, or can be doubled using 3 EOL resistors. The standard value for EOL resistors is 1kΩ. In case of zone doubling, the 3rd EOL resistor should be 2kΩ. EC-84 expansion module selectable input types NO/NC EOL.

The communicator has two OC outputs, which can be freely configured as NO / NC and bistable or monostable:

EniCom communicators can establish a connection with the cloud service. This is completely independent of the specific application and the reporting routes set up. Remote control and remote programming of devices are possible through the cloud connection.

• Instant two-way transfer (Contact ID)
• Plastic housing, SMA antenna connector
• Automatic configuration of network settings (DHCP)
• Send to four remote monitoring stations via Ethernet
• Send to four remote monitoring stations on GPRS/HSPA/UMTS
• Backup / Parallel / GPRS/HSPA/UMTS transmission modes only
• Remote programmability
• SMS forwarding to 1 specified phone number
• 256 event buffer memory
• Encryptable communication
• Configuration via USB and Cloud
• The main functions can be programmed with SMS messages
• Four own inputs that can be doubled with adjustable event codes
• can be expanded with EC-IO84 panel with 8 inputs and 4 outputs (optional) max. 8 can be connected (64/32 inputs/outputs in total)
• Upgradeable firmware
• EN 54-21 compliance
