InterCom GSM Kit 2 flats - GSM call forwarding device (intercom / lifts)

ASC Global
270€ + VAT ( 343€ )
Availability: In stock
Expected delivery: July 23, 2024

GSM intercom module, 2 apartments version

  • 2 apartments intercom with metal push buttons, microphone, speaker
  • 2 relay output which can be controlled by DTMF codes during a call
  • Free gate opener function from 1000 phone numbers
  • Power monitoring
  • Event log of 16.000 entries, continuous GSM signal strength monitoring
  • Night shift mode: a time interval can be set when the module will not forward incoming calls
  • Programming by SMS, PC and Android
Manufacturer's warranty
Manufacturer's warranty
We offer a min. 2-year manufacturer's warranty on our products
Fast delivery
Fast delivery
We deliver our products from stock with a short deadline
Technical support
Technical support
We provide clear and comprehensive technical support for our products in addition to the English language description and videos
More than 10 years of experience
More than 10 years of experience
We look back on a history of more than 10 years in the production and development of our products
Continuous development
Continuous development
We are constantly developing our products and services, which are also available for our older products
270€ + VAT ( 343€ )


The InterCom GSM two apartments outdoor unit is equipped with metal push buttons. We can enter a maximum of 8 phone numbers to be notified. The phone numbers can also be called using a round call, i.e. everyone has to pick up, or the first person to pick up stops the round call.
The talk time and the ringing time can also be set. It establishes a connection with the called number on a GSM network, so the distance is unlimited, and only the power supply needs to be provided to operate the device. LED lighting is placed in the upper part of the box, the colour of which can be adjusted and ensures the illumination of the nameplate and the push button.

After answering the call, we can control two outputs separately. Howbeit, the device allows us to handle, for instance, a gate and a magnetic door separately.

We can manage the output from 1000 phone numbers by using caller identification. Without caller identification, we can activate the output from any number.

The power monitor allows us to send SMSs or voice messages during a power outage. A Lithium-polymer battery, equipped with a quick connector, provides continuous operation for even 24 hours.

The programming is possible by SMS, voice menu, android (Bluetooth), or PC (USB or Bluetooth) with the ProRead software. The GSM device measures and logs the GSM signal hourly, which can be read and charted. The module can store up to 16,000 events, including the states of the inputs and outputs, power supply resets, GSM network and module state-related information, incoming and outgoing calls, and SMSs.

InterCom GSM setting

Application areas:

  • Wireless intercom
  • Control: gate, barrier, and garage door opening
  • Monitoring power supply (230V) along with sending notifications about its change
  • Lift caller

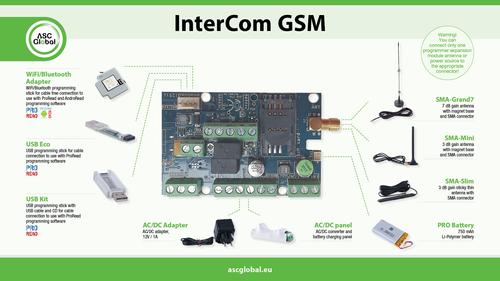

InterCom GSM accessories

Product features

Inputs (+ expander): 5
Relayed Outputs (+ expander): 2
Relayed output load: max. 20V@500mA
OC outputs (+ expander):
OC output load:
User phone numbers for sending notifications: 8
User phone numbers for output control: Unlimited / 1000 phone number
Independent signal sending to monitoring center:

User phone numbers for forwarding incoming SMSs:

Transmission channel: GSM/GPRS
Caller identification:
Alarm center function (arm/disarm, entry/exit delay)
Selectable 24h zones:
Adjustable input sensitivity:
Configurable inputs (NO/NC):
Independent SMS sending to user phone numbers with customized text:
Monitoring station phone numbers: 2
Periodic test report sending:

Sending recorded voice messages to user phone numbers:

Sending alarm to user phone number with a siren sound:
Inbuilt internal clock:
Event list / number of stored events: 16 000
GSM siognal strength monitoring and logging hourly

Translation Contact ID codes into SMS along with sending it to user phone numbers (Distinguishing 250 events and 250 zones)

Configurable own Contact ID codes:
Telephone line simulation:
PSTN phone line monitoring:

Output activation with free GSM call:

Security SMS password:
Programming software(PC, Android):
Programming method: USB / SMS / Bluetooth / WIFI
Battery connection options:
Power drain (standby/transmitting over GSM): 40mA + external unit current consumption / 400mA + external unit consumptiom
Simulated line/transmitting over GSM:
Power voltage: 9-24 VDC


Power voltage 9-24 VDC
Standby power drain 40 mA + external unit current consumption
Maximum power drain 400 mA + external unit current consumption
Relay output load max. 20V / 500 mA
GSM module type SIMCOM 900
GSM frequencies GSM 850 / EGSM 900 / DCS 1800 / PCS 1900 (Multi-Band)
SIM card usage brand free GSM module
GSM antenna type SMA connector
Size 78 x 51 x 20 mm, in package:132 x 128 x 32 mm
Operating temperature -20°C – +50°C
